SGC
Gimbal which has 15 degrees "Swing System" for both right and left side. As it enables you to adjust rod angle to match with the moving of large fish, it eliminates twist, and maximize rod power. For Offshore / Light Trolling / Boat for Large Fish.

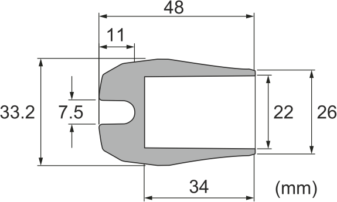

SGC 22 P | |
22 |
ERC
Rubber Cap
ERC | |
20.0 | |
23.0 |
SIZE CHART
Size | I/D mm | O/D mm |
20.0 | 20.0 | 25.4 |
23.0 | 23.0 | 26.8 |
EWBC
Over the butt type wight balancer cap.
EWBC | |
21 |
GC
Gimbal.
GC | |
20.5 | |
24.0 |
SIZE CHART
Size | L mm | I/D mm | O/D mm | A mm |
20.5 | 59.0 | 20.5 | 26.1 | 43.0 |
24.0 | 75.0 | 24.0 | 30.1 | 58.0 |
BRP
Rubber butt plug.
BRP | |
8 |
BRC OR
Soft Butt Cap.
BRC OR | |
19.0 | |
22.0 | |
25.0 |
SIZE CHART
Size | L mm | I/D mm | O/D1 mm | O/D2 mm | A mm |
19.0 | 40.5 | 18.0 | 32.8 | 23.5 | 37.0 |
22.0 | 48.0 | 22.0 | 37.8 | 28.0 | 42.0 |
25.0 | 53.5 | 25.0 | 38.0 | 31.0 | 47.5 |
BRC GC
Soft gimbal cap for GC
BRC GC | |
22 | |
25 |
SIZE CHART
Size | L mm | I/D1 mm | I/D2 mm | O/D1 mm | O/D2 mm | A mm |
22 | 48.0 | 25.0 | 23.0 | 37.8 | 28.0 | 42.0 |
25 | 53.5 | 28.0 | 26.5 | 38.4 | 31.0 | 47.5 |
GRC
Combines three functions of butt cap, gimbal and gimbal cap. The key is a cross groove.The rubber material fits a harness snugly and it improves stability with the rod holder of a boat.
GRC | |
| 19 | |
22 |
SIZE CHART
Size | L mm | I/D1 mm | O/D1 mm | O/D2 mm | A mm |
19 | 44.6 | 19.0 | 33.0 | 27.0 | 33.0 |
22 | 44.6 | 22.0 | 33.0 | 27.0 | 33.0 |
LO/AN
Pipe Type Reel Seat
Newly developed "Lock-Nut" for double-nut system. All parts are made of reinforced plastic . Backstop mechanism to minimize the loosening by adopting new collar structure. Exclusively designed for DPS-SD/ASH.
LOGR/AN | |
| 18 | |
20 | |
22 | |
24 |
SIZE CHART
Size | L1 mm | L2 mm | I/D1 mm | I/D2 mm | O/D mm | WT. g |
18 | 10.6 | 8.6 | 20.30 | 21.40 | 25.4 | 1.90 |
20 | 10.90 | 8.7 | 22.30 | 23.40 | 27.3 | 1.90 |
22 | 12.25 | 8.7 | 24.25 | 25.35 | 29.3 | 1.85 |
24 | 12.30 | 8.7 | 26.25 | 27.35 | 31.7 | 1.85 |
